IONOS DCD

info

For more information and scripts related to the deployment, please refer to the ./deployment/edc_vc directory of the GitHub repository.

Deployment Architecture Overview

This deployment aims to deploy https://github.com/eclipse-edc/MinimumViableDataspace in the IONOS environment, the current deployed version is 8cf5a75f39d43f18da60e931d6381727191dc275

Deployed IONOS Components:

• Compute Instances:
  • Name: EDC MVD
  • Type: VCPU-Server-1
  • DHCP: enabled
  • vCPUs: 2
  • RAM: 8 GB
  • Deployed Components on this Instance:
    • Docker
    • KinD (other cluster engines may work as well - not tested!)
    • Terraform
    • JDK 17+
    • k9s
    • Git
    • a POSIX compliant shell
    • Postman (to comfortably execute REST requests)
    • newman (to run Postman collections from the command line)
    • Deployed and build by following https://github.com/eclipse-edc/MinimumViableDataspace, locate under /root/emds_edc_mvd folder, current deployed version is 8cf5a75f39d43f18da60e931d6381727191dc275.
• Storage Instances:
  • Name: SSD Storage 1 (Attached to Test Case 1 Server) (boot option)
  • Type: SSD Storage
  • Size: 100GB
  • SSH Key: SSH Key 1 - id rsa (key pair:id_ed25519.zip, use it for ssh)
  • Image: ubuntu 24.01-sever-clouding-amd64-20240425
    • username: root
    • password:12345678
• Networks:
  • Name: N\A
  • Type: Internet Access (via LAN1 with EDC MVD)
• Operational:
  • Connect to the deployed server use OpenSSH by Connect via SSH | Products (ionos.com) e.g. ssh root@5.250.180.17 to connect to EDC MVD

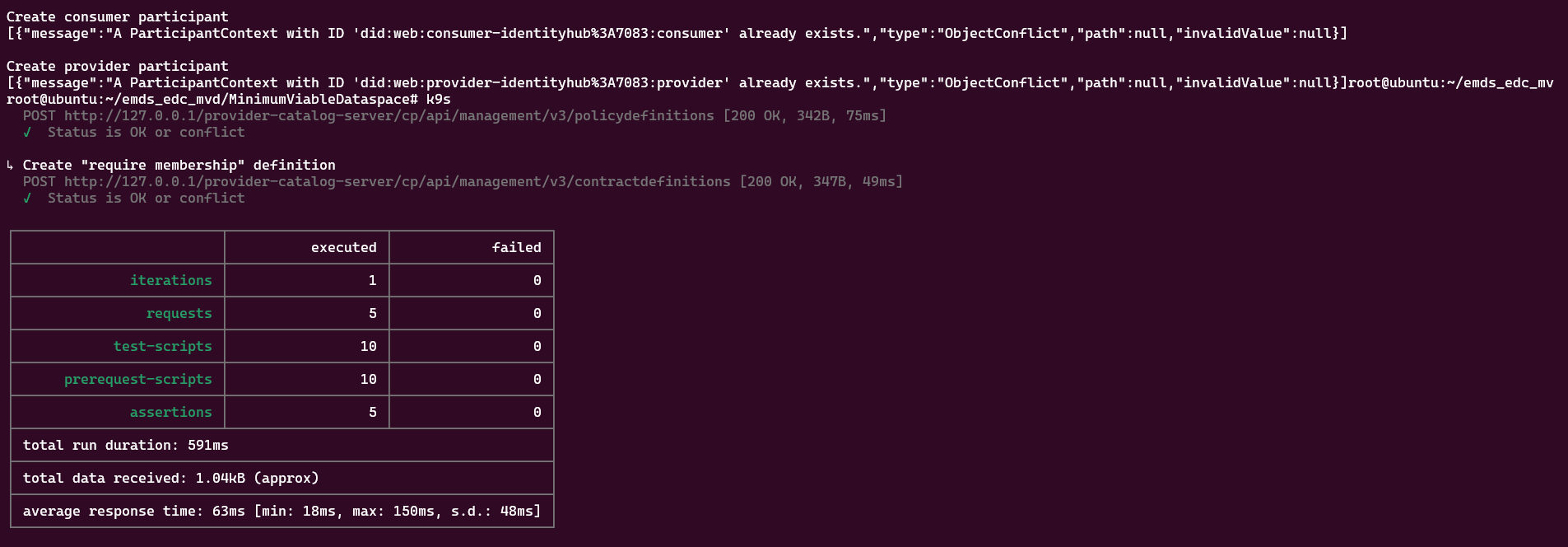

• Deployment and run test results:
  • View in k9s:
  • View in the console:
